Handmade Fender style 'casters

Hotrod

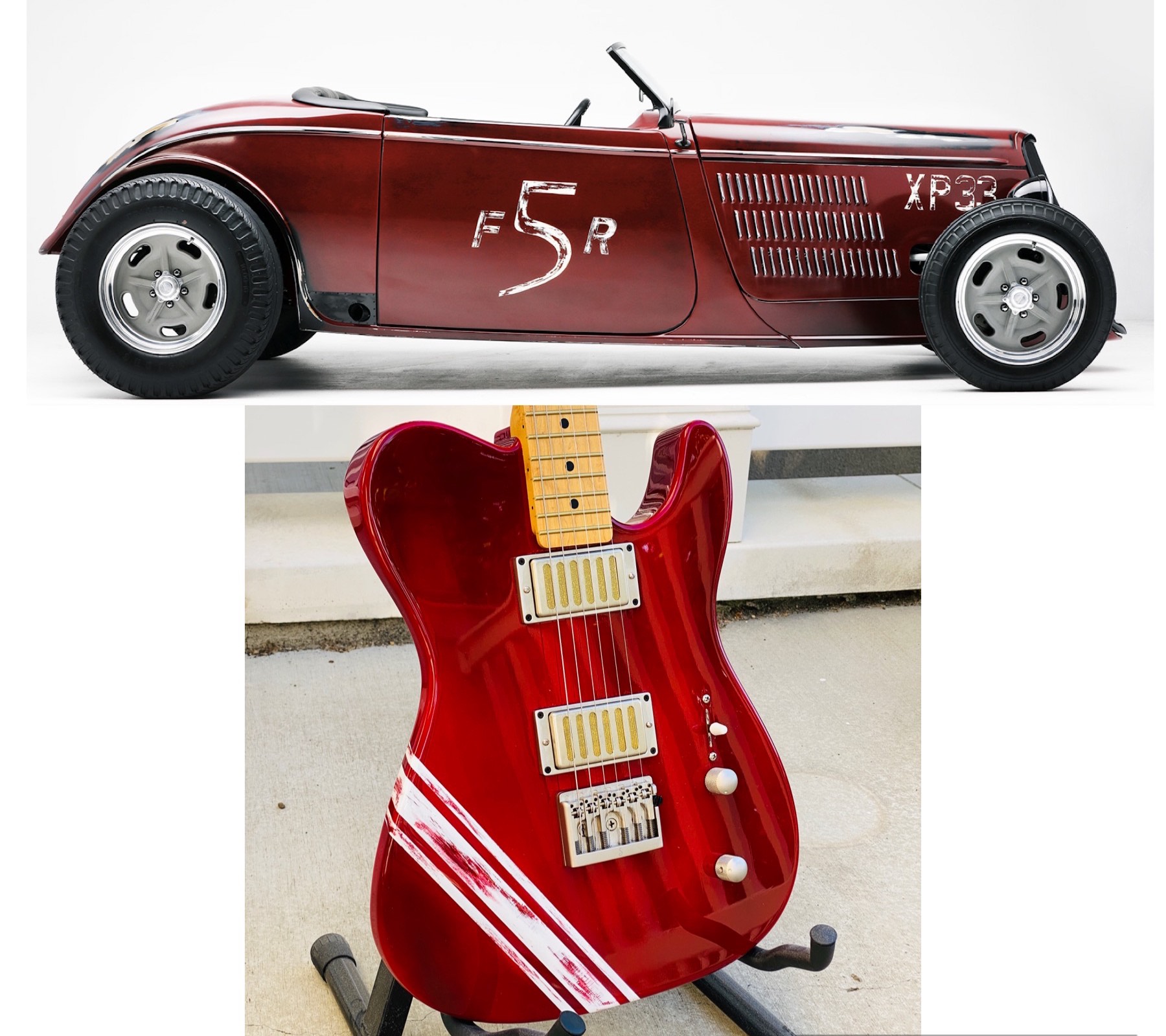

IMG_3264

Blog Post:

Here.

Neck:

Style Telecaster
Construction 2-piece, vintage/modern
Scale 25 – ½”
Neck wood Bird’s eye maple
Fingerboard Bird’s eye maple
Nut width 1-3/4”
Back shape Standard Thin
Fret size 6130
Radius Compound radius
Nut GraphTech White TUSQ
Finish Vintage tint satin nitro finish

Neck settings:

Bow – 0.090″ at the fifth fret

Action @17th fret:

E - 0.070"
A - 0.080"
D - 0.080"
G - 0.080"
B - 0.080"
e - 0.070"

Tuners:

Schaller M6 135 Locking 6 inline Tuners, satin pearl finish

Strings:

D’addario NYXL 9-42

Body:

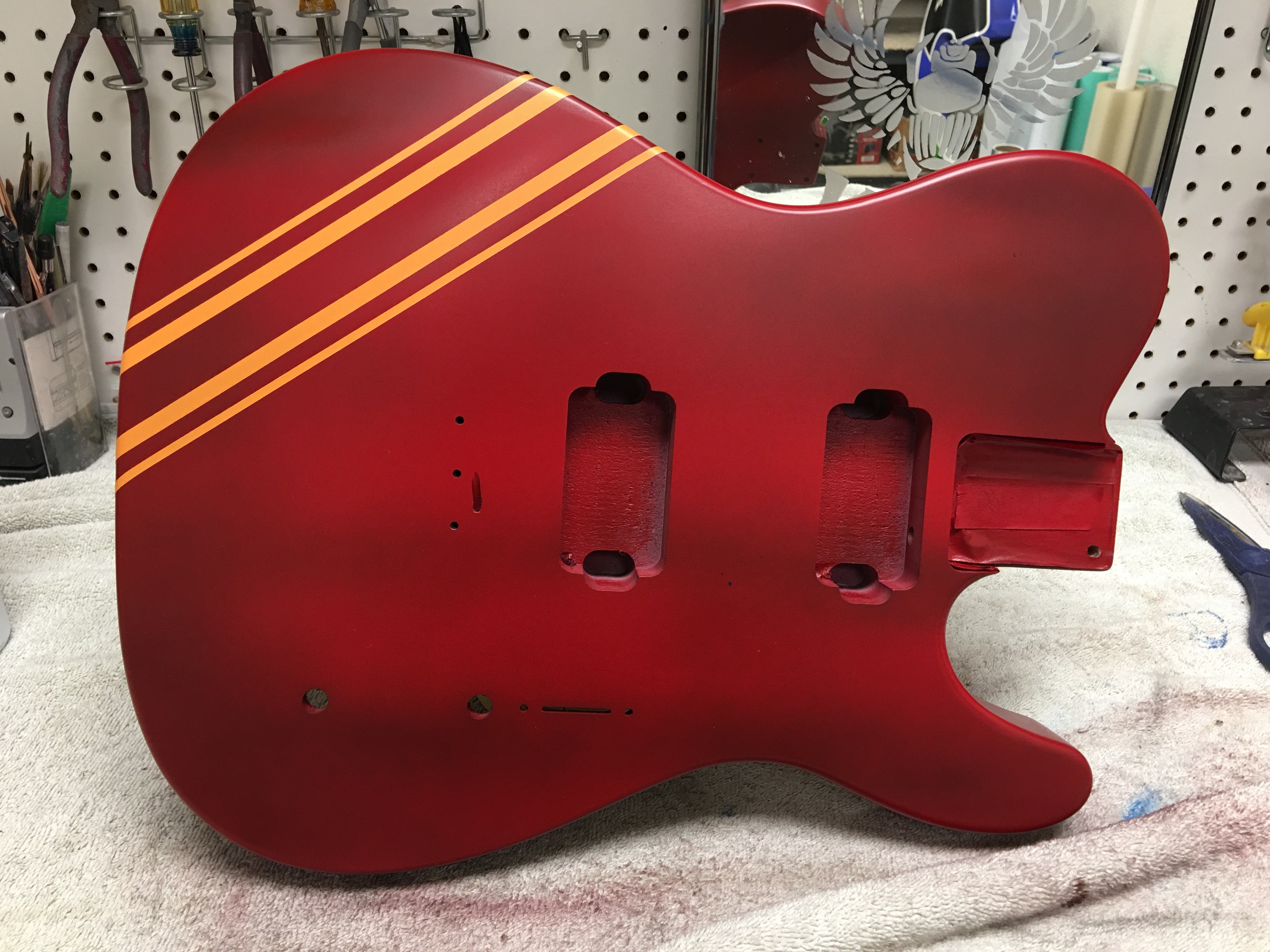

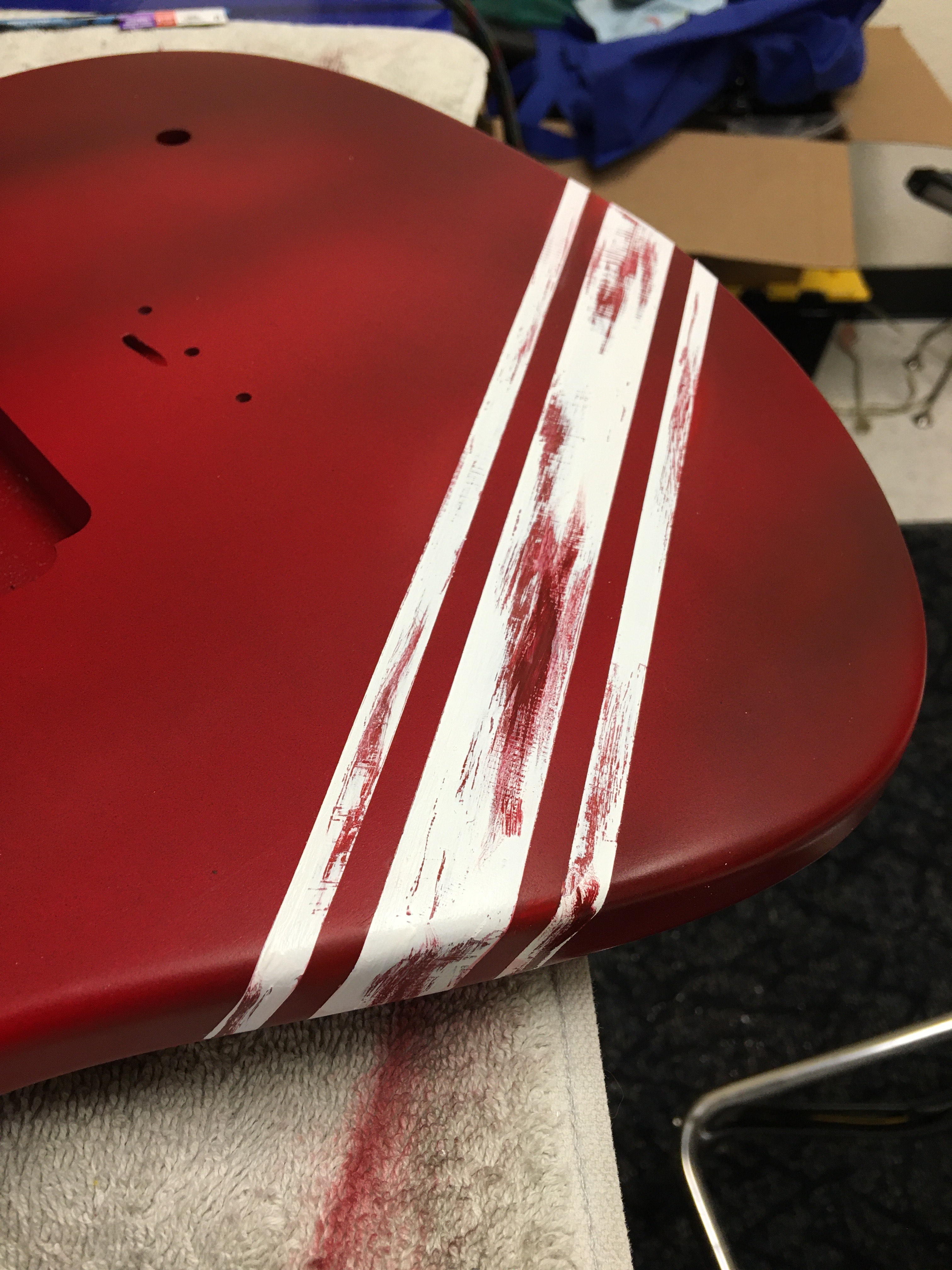

Telecaster shape, custom paint by Daneen, gloss finish.

Pickups:

Neck: Seymour Duncan Jazz humbucker, raw nickel w/gold mesh

Bridge: Seymour Duncan Pearly Gates humbucker, raw nickel w/gold mesh

Classic-Output-Humbucker-Pickups-11102-45-RNRc-GM

Bridge:

Schaller 3D-6, with string adjustability in 3 dimensions, finished in satin pearl

IMG_2506

Other Hardware:

Schaller knobs and jack plate, in satin pearl.

Setup:

Fender Telecaster Setup Guide

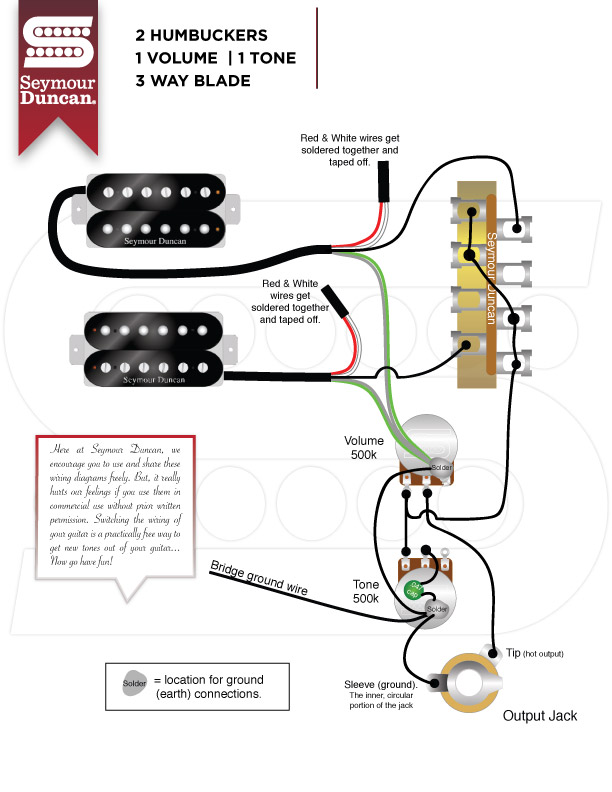

Wiring diagram (Humbuckers w/3-way blade)

2H_3B_1V_1T
