Tuttomondo



Blog Post:

Building Tuttomondo

Neck:

Style Telecaster
Construction Modern two piece
Scale 25 – ½”
Neck wood Quartersawn maple
Fingerboard Maple
Nut width 1-11/16”
Back shape Slim
Fret size SS6105 (stainless steel)
Radius 9.5″
Nut GraphTech White TUSQ XL standard
Finish Satin finish

Neck settings:

Bow – 0.091″ at the fifth fret

Action @17th fret:

E - 0.060"
A - 0.050"
D - 0.050"
G - 0.050"
B - 0.040"
e - 0.040"

Tuners:

Schaller locking tuners

Strings:

D’addario NYXL 9-42

Body:

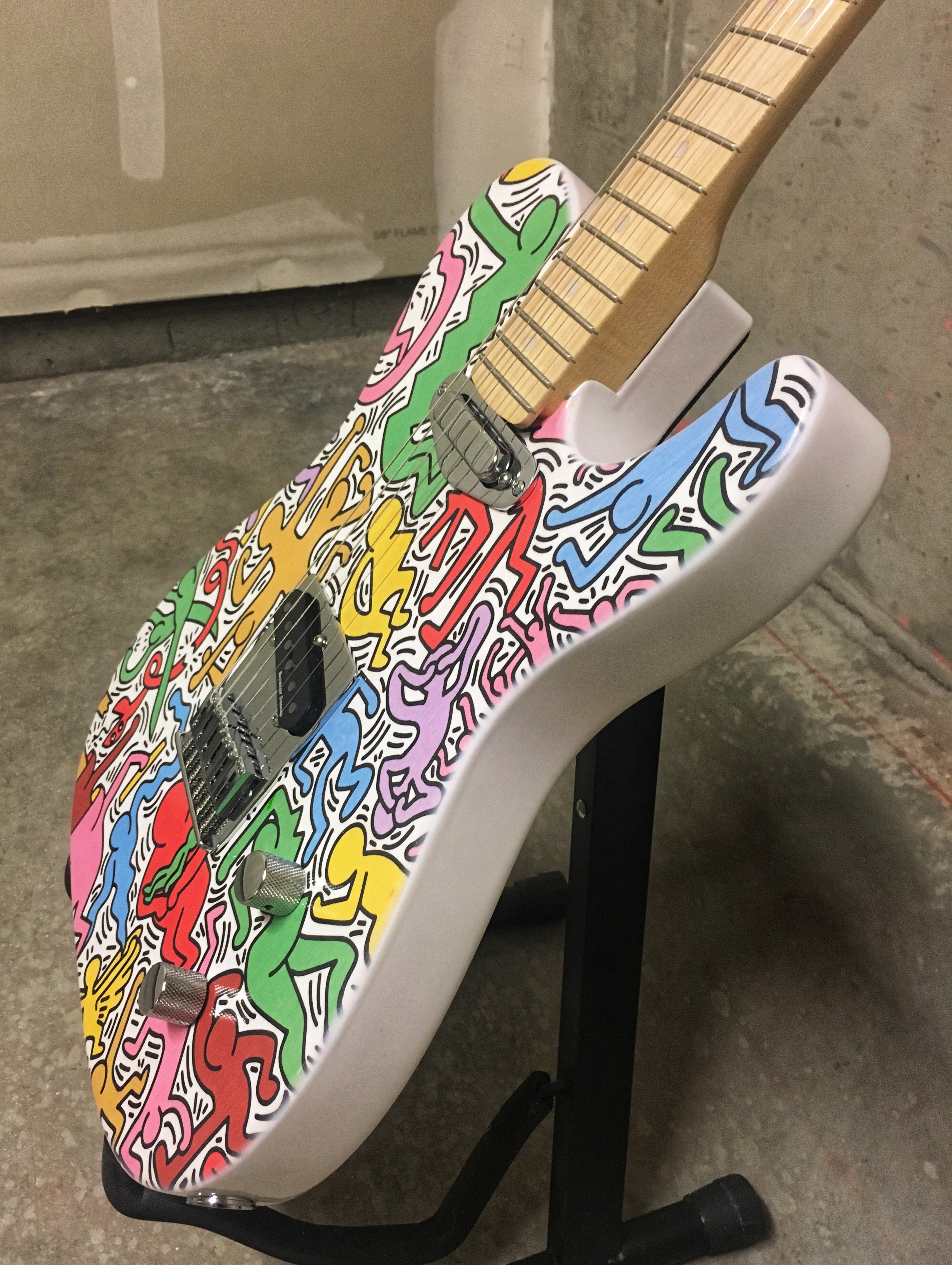

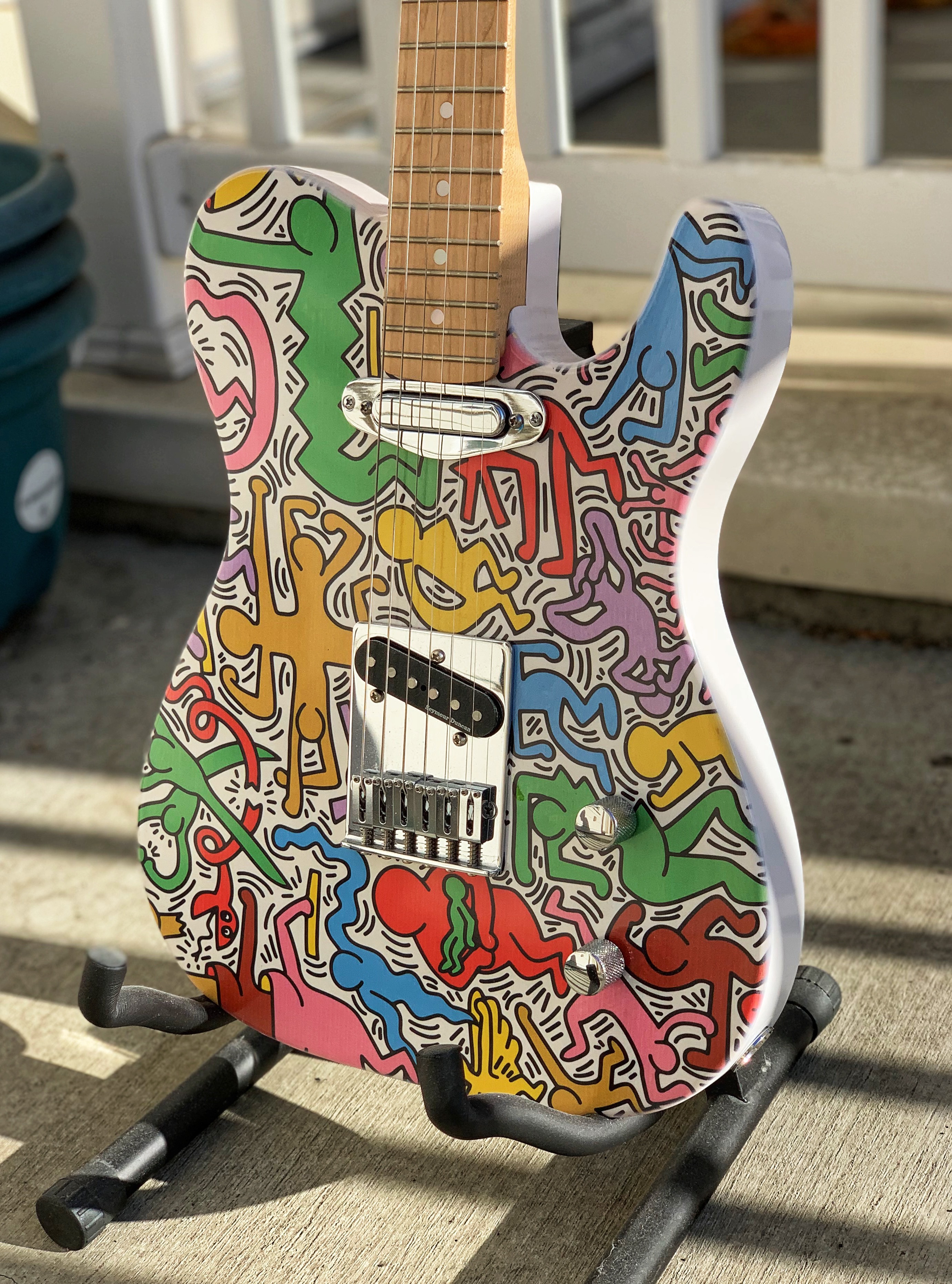

Telecaster shape, Strat shaped neck pocket, Tuttomondo mural on front,

Pickups:

Bridge: Seymour DuncanVintage Stack for Tele – Bridge (STK-T3b)

Neck: Seymour Duncan Vintage Stack for Tele – Neck (STK-T1n)

Bridge:

Modern 6 saddle Gotoh Tele Bridge

Setup:

Fender Telecaster setup guide

Wiring diagram (no pickup selector)

IMG_2654
